Lithium Polymer Battery Pack 115570 3.7V 7.4V 11.1v 5000mAh 18.5wh For Portable Medical Device

Lithium Polymer Battery Pack 115570 3.7V 7.4V 11.1v 5000mAh 18.5wh For Portable Medical Device

Tên thương hiệu: RESKY
Số mẫu: LP115570
MOQ: 10pcs
giá bán: có thể đàm phán
Chi tiết bao bì: Paper box
Điều khoản thanh toán: T/T,Western Union
Thông tin chi tiết
Place of Origin:
China
Chứng nhận:
CE, RoHS, MSDS, Un38.3
Model NO.:
LP115570
Nominal Capacity:
5000mAh
Continuous Discharging Current:
0.5c
Max Discharging Current:
1c
Weight:
65g
MOQ:
10PCS
Cycle Life:
500cycles
Specification:
11*55*70mm
HS Code:
8507600090
Supply Ability:
10000PCS/Day
Supply Ability:
50000pcs/day
Làm nổi bật:

Lithium Polymer Battery Pack for medical devices

,

3.7V 5000mAh Lithium Polymer Battery

,

7.4V portable medical device battery

Mô tả sản phẩm
Lithium Polymer Battery Pack 115570 3.7V 7.4V 11.1v 5000mAh 18.5wh For Portable Medical Device
Product Attributes
Attribute Value
Model NO. LP115570
Nominal Capacity 5000mAh
Continuous Discharging Current 0.5c
Max Discharging Current 1c
Weight 65g
MOQ 10PCS
Cycle Life 500cycles
Specification 11*55*70mm
HS Code 8507600090
Supply Ability 10000PCS/Day
Technical Specifications
NO. Items Specifications
1 Batteries 3.7v 5000mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 5000mAh 0.2C Discharge
5 Charge current Standard Charging:0.5C
Rapid charge:1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time Standard Charging:2.75hours(Ref.)
Rapid charge:2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging:0°C~45°C
Discharging:0°C~45°C
12 Storage temperature -10°C~+45°C
13 Dimension Length:70±2mm (not including tabs)
Width:55±0.5mm
Thickness:11±0.5mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 Cycle time ≥500times
Key Advantages
  • Safety: Aluminum-plastic flexible packaging structure ensures inflation without explosion in case of abnormality. Multiple built-in protection mechanisms for overcharge, overvoltage, over-discharge, and short circuit.
  • Thin and Lightweight: Less than 1mm thick and 40% lighter than similar steel-cased batteries, ideal for size- and weight-sensitive devices.
  • Long Cycle Life: Over 600 cycles with theoretical lifespan of 2-3 years, suitable for long-term applications.
  • Customizable: Form can be adjusted to meet specific needs, with optimized designs for specialized applications.
  • Low-Temperature Adaptability: Operates from 0°C to 45°C, with potential for lower temperature applications (performance evaluation required).
Applications
  • Consumer Electronics: Power banks, hand warmers, massagers, and other portable devices
  • Industrial Equipment: Smart locks, wearable products (watches/bracelets)
  • Special Scenarios: Devices for low-temperature environments (low-temperature performance evaluation required)

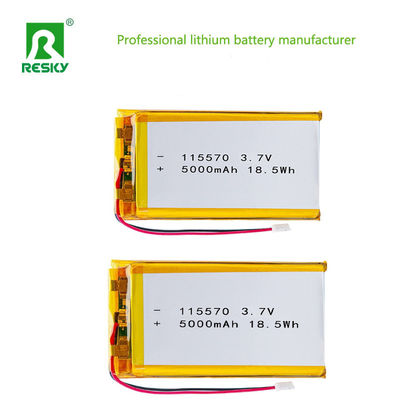

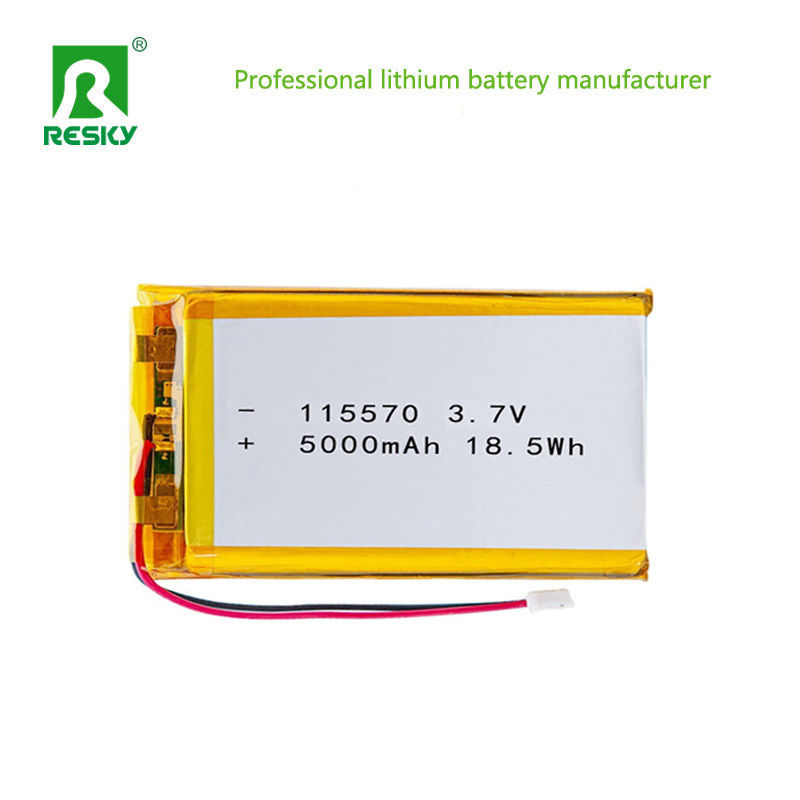

Product Images
