| Tên thương hiệu: | RESKY |
| Số mẫu: | LP602535 |
| MOQ: | 10pcs |
| giá bán: | có thể đàm phán |
| Chi tiết bao bì: | Hộp giấy |
| Điều khoản thanh toán: | , T/T, Liên minh phương Tây |
Lithium Polymer Battery Cell 602535 3.7V 4.2V 400mAh 500mAh 1.85wh Power Lipo Batteries
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 500mAh 0.2C Discharge |
| 5 | Charge current |
Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time |
Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.75V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length: 35±2mm (not including tabs)
Width: 25±0.5mm Thickness:6±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Application:
Portable Devices:
Laptops and Notebooks: Li-poly batteries contribute to the sleek and lightweight design of modern laptops.
Portable Game Consoles: These devices rely on Li-poly batteries for extended gaming sessions without being tethered to a power outlet.
E-readers: Devices like Kindles use Li-poly batteries to ensure long reading times on a single charge.
Military and Aerospace:
Portable Military Electronics: Li-poly batteries are used in various military devices for their high energy density and reliability.
Satellites and Spacecraft: In aerospace applications, Li-poly batteries are carefully engineered to meet strict safety and performance requirements.
Product features:
1. High security performance
2. Thin thickness, adjustable thickness
3. Lightweight
4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved
5. Low internal resistance and long cycle life
6. Flexible size available
7. Good discharge performance

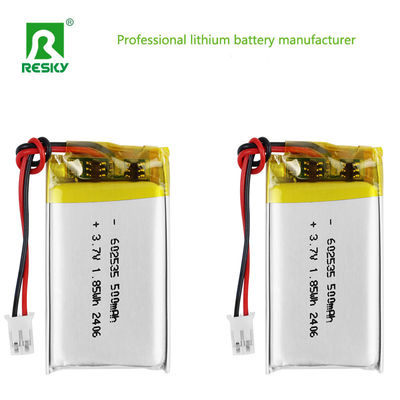

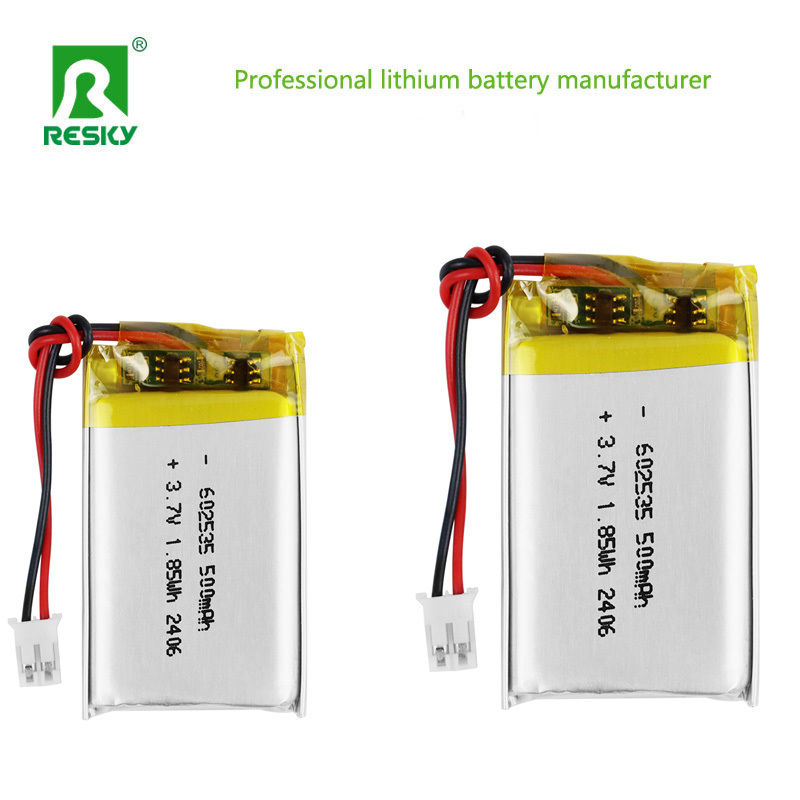

Product Picures:
|
| Tên thương hiệu: | RESKY |
| Số mẫu: | LP602535 |
| MOQ: | 10pcs |
| giá bán: | có thể đàm phán |
| Chi tiết bao bì: | Hộp giấy |
| Điều khoản thanh toán: | , T/T, Liên minh phương Tây |
Lithium Polymer Battery Cell 602535 3.7V 4.2V 400mAh 500mAh 1.85wh Power Lipo Batteries
| NO. | Items | Specifications |
| 1 | batteries | 3.7v 500mah lipo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 500mAh 0.2C Discharge |
| 5 | Charge current |
Standard Charging:0.5C Rapid charge: 1.0C |
| 6 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 | Charging time |
Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
| 8 | Max.charge current | 1.0C |
| 9 | Max.discharge current | 1.0C |
| 10 | Discharge cut-off voltage | 2.75V(0.2C) |
| 11 | Operating temperature | Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C |
| 12 | Storage temperature | -10°C~ +45 °C |
| 13 | Dimension | Length: 35±2mm (not including tabs)
Width: 25±0.5mm Thickness:6±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 | cycle time | ≥500times |
Application:
Portable Devices:
Laptops and Notebooks: Li-poly batteries contribute to the sleek and lightweight design of modern laptops.
Portable Game Consoles: These devices rely on Li-poly batteries for extended gaming sessions without being tethered to a power outlet.
E-readers: Devices like Kindles use Li-poly batteries to ensure long reading times on a single charge.
Military and Aerospace:
Portable Military Electronics: Li-poly batteries are used in various military devices for their high energy density and reliability.
Satellites and Spacecraft: In aerospace applications, Li-poly batteries are carefully engineered to meet strict safety and performance requirements.
Product features:
1. High security performance
2. Thin thickness, adjustable thickness
3. Lightweight
4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved
5. Low internal resistance and long cycle life
6. Flexible size available
7. Good discharge performance
Product Picures:
