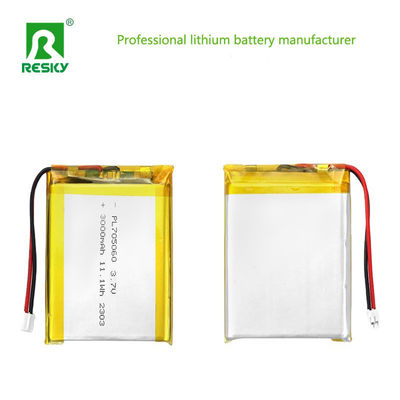

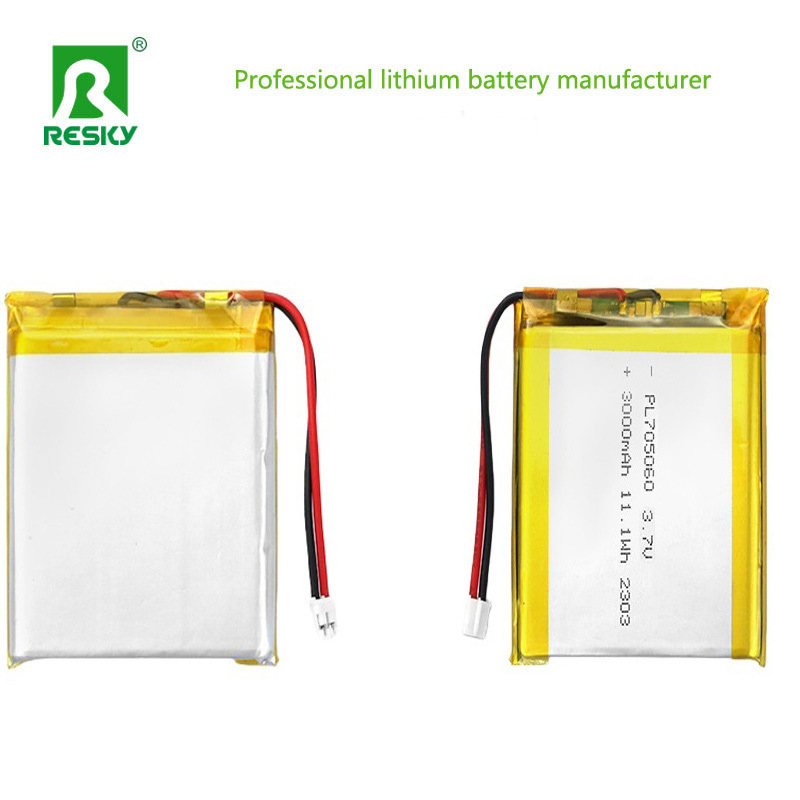

Rechargeable Lifepo4 Battery Cell 705060 3000mAh 3.7V 3.8V Power Lithium Ion Polymer Batteries

Tên thương hiệu:	RESKY
Số mẫu:	LP705060
MOQ:	10pcs
giá bán:	có thể đàm phán
Chi tiết bao bì:	Hộp giấy
Điều khoản thanh toán:	T/T, Công Đoàn Phương Tây

Thông tin chi tiết

Mô tả sản phẩm

Đánh giá & Nhận xét

Thông tin chi tiết

Nguồn gốc:

TRUNG QUỐC

Chứng nhận:

CE, RoHS, MSDS, Un38.3, IEC62133,ECT

Tài liệu:

LP104060 30000mAh with PCB ...24.pdf

Hình dạng:

pin vuông

Chất điện giải:

Li (Nicomn) O2

Sạc lại:

Tính phí

Năng lực danh nghĩa:

3000mah

Xả liên tục hiện tại:

0,5C

Dòng xả tối đa:

Cân nặng:

65g

Cuộc sống chu kỳ:

500CYCLES

Đặc điểm kỹ thuật:

10*40*60mm

Mã HS:

8507600090

Khả năng cung cấp:

50000pcs/ngày

Làm nổi bật:

Rechargeable Lifepo4 battery 3000mAh

Lithium Ion Polymer battery 705060

3.7V Power battery with warranty

Mô tả sản phẩm

Rechargeable Lifepo4 Battery Cell 705060 3000mAh 3.7V 3.8V Power Lithium Ion Polymer Batteries

Product Attributes

Attribute	Value
Shape	Square Battery
Electrolyte	Li(Nicomn)O2
Rechargeable	Chargeable
Nominal Capacity	3000mAh
Continuous Discharging Current	0.5c
Max Discharging Current	1c
Weight	65g
Cycle Life	500cycles
Specification	75060mm
HS Code	8507600090

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7v 3000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	3000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	0.5C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging:0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length:60±2mm (not including tabs) Width:50±0.5mm Thickness:7±0.5mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Main Features

Large Size, High Capacity Design
Integrated Design with Added Circuit Board and Wiring
Built-in Protection Board
Operating Temperature Range: Standard models support discharge from -20℃ to 60℃
Safety and Durability Guaranteed
Soft-pack Structure Advantages: Aluminum-plastic film encapsulation makes it less prone to explosion under abnormal conditions; it may only bulge or release gas, significantly safer than steel-cased batteries
Long Cycle Life: Under 0.2C charge/discharge conditions, cycle life exceeds 500 cycles, with a capacity retention rate ≥80%, suitable for long-term use
Compatibility and Customization Capabilities
Standard Voltage Adaptation: 3.7V nominal voltage is compatible with the power management systems of mainstream electronic devices (such as mobile phones and tablets), eliminating the need for additional step-down circuits
Flexible Customization Options: Adjustable wire length, connector type (such as Molex, Hirose), and protection board parameters support OEM/ODM mass production
